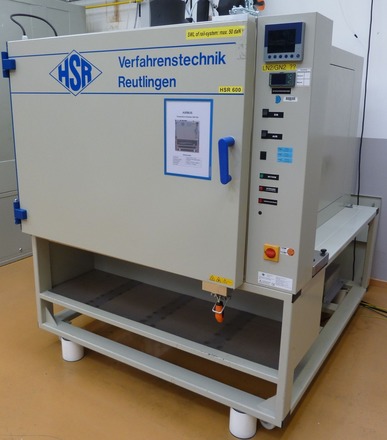

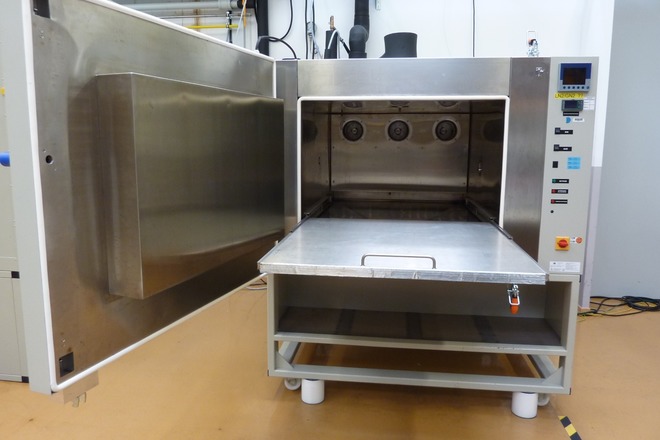

The thermal cycling test facility shall simulate the environmental thermal conditions in space. The temperature of the test item can be controlled by gaseous nitrogen.
Available standards (e.g. ASTM, MIL):
Common ECSS, DIN EN 61340
Specimen length [mm]:
1000.0
Specimen width/dia [mm]:
930.0
Specimen height/thk [mm]:
600.0
Mass max. [kg]:
50.0
Higher temperature [K]:
390.0
Lower temperature [K]:
170.0
Temperature change rate [±K/min]:
12.0
Feedthroughs:
Direct Feedthrough via Hole
Data acquisition:
Keysight 34970A/34980A (up to 180 signals - Thermocouples/Resistance/Voltage)
Cleanroom classes (ISO 14644-1):
ISO Class ≤5
ISO Class 6
ISO Class 7
ISO Class 8
ISO Class 9
Certification:
ISO/IEC 17025
ISO 9001
AS/EN/JISQ 9100
Keywords:
Thermal Cycling, Airbus Defence and Space, Friedrichshafen, Germany
