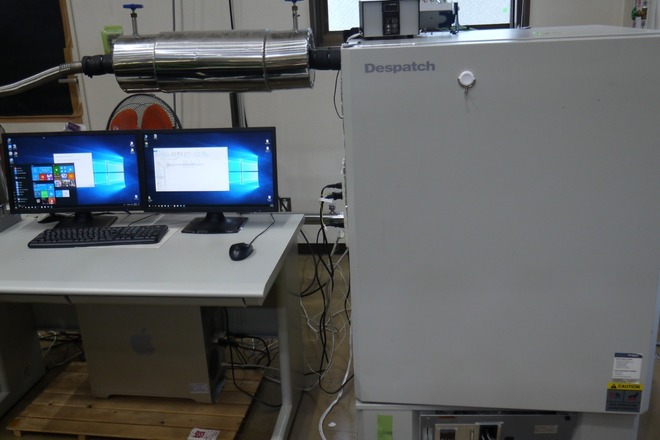

Big thermal cycle chamber

The model number is Despatch LAC-2-12-6. The temperature is controlled by Watlow 982. Heated air and LN2 are used for heating and cooling of article. If user needs less humidity condition, Aluminum sheet with N2 parge can be used as a protector sheet.

Specimen length [mm]: 600.0
Specimen width/dia [mm]: 600.0
Specimen height/thk [mm]: 900.0
Mass max. [kg]: 50.0
Higher temperature [K]: 473.0
Lower temperature [K]: 93.0
Temperature change rate [±K/min]: 10.0
Data acquisition: 32 Channels based on LabVIEW program
Project heritage: Kyutech satellite project, Japanese Universities and Company, Over seas Universities and Company
Keywords: Thermal vauum, Microsat, component
