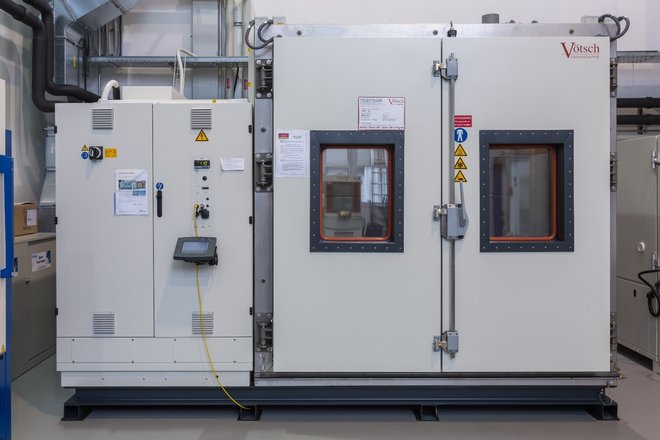

Climatic chamber Vötsch VCS³ 7540-8-S PREMIUM

Thermal and Humidity Testing Service

The Beyond Gravity Test Center is equipped with the large climatic test chamber Vötsch VCS³ 7540-8-S*for large test items.

This chamber complements our capacity for testing large test items with our large vibration facility. Furthermore this climatic chamber has a fast temperature change rate with up to 10 K per min.

This climatic chamber are able to regulate humidity from 10% RH p to 95% RH in addition to temperature.

The achievable temperature range of this chamber extends from -72°C up to a maximum of +180°C. The Tests can be programmed with the control and recording system and is fully network compatible. It is also possible to perform a variety of wet tests as dripping water, splash water and immersion tests.

Accredited test method or according to customer specifications:

Thermal

  • EN 60068-2-1/2
  • MIL-STD-810 Meth. 501/502
  • RTCA DO-160 Section 5
  • V009 100 Guideline USP of GR test Nr.101/102
  • ASTM F1980 – 16

Thermal cycling

• RTCA DO-160 Section 5
• ECSS-E-10-03A

Humidity / Climate

  • EN 60068-2-30
  • EN 60068-2-38
  • EN 60068-2-78
  • MIL-STD-202 Meth. 103
  • MIL-STD-810 Meth. 507
  • RTCA DO-160 Section 6
  • ECSS-E-10-03A
  • V009 100 Guideline USP of GR test Nr.201
  • ASTM F1980 - 16

Because of a extensive experience of testing our in-house projects, our specialists ensure a high quality service. In addition theBeyond Gravity Test Center is an accredited test center according to ISO EN 17025.

Type: Service
Specimen length [mm]: 1350.0
Specimen width/dia [mm]: 2000.0
Specimen height/thk [mm]: 2000.0
Mass max. [kg]: 500.0
Higher temperature [K]: 453.0
Lower temperature [K]: 201.0
Highest rH [%]: 95.0
Lowest rH [%]: 10.0
Temperature change rate [±K/min]: 10.0
Data acquisition: Operational data are recorded automatically; additional data acquisition can be provided
Project heritage: RUAG Space performs climatic testing services for several industrial applications: Characteristics, function and service lifeof systems or components are influenced by varying thermal and climatic conditions during transport, storrage and use. For this reason, tests have to be carried out in order to safeguard and optimize the quality of the product.
Certification:
ISO/IEC 17025
ISO 9001
AS/EN/JISQ 9100
Keywords: Environmental simulation; climatic chamber; forced aging, ruag, switzerland, beyond gravity
