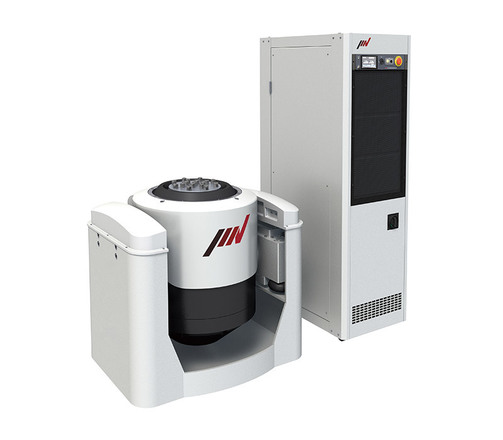

The A-Series shaker meet a wide range of vibration test requirements and specifications for a versatile testing environment.

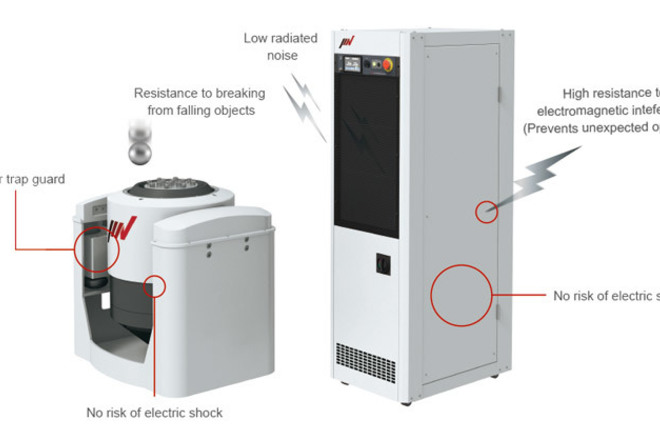

A-Series shaker combine advanced automatic energy-saving technology and a high level of functionality and provide an improved working environment for vibration testing.
Sine Force: 11 kN
Random Force: 11 kNrms
Shock Force/High Velocity Mode: 22 kN/16.5kN
Velocity Sine: 2 m/s
Velocity Shock/High Velocity Mode: 2.5 m/s/3.5 m/s
Displacement: 51 mm pk-pk
Maximum Load: 200 kg
Cooling: Air Cooled
Higher Shock Force available, depending on amplifier configuration.
Possible to add expanders (guided and unguided), slip tables and vibration controllers.

Type: Product
Specimen length [mm]: 676.0
Specimen width/dia [mm]: 946.0
Specimen height/thk [mm]: 827.0
Mass max. [kg]: 1080.0
Keywords: eco-shaker, vibration, smart, IMV, A-series
