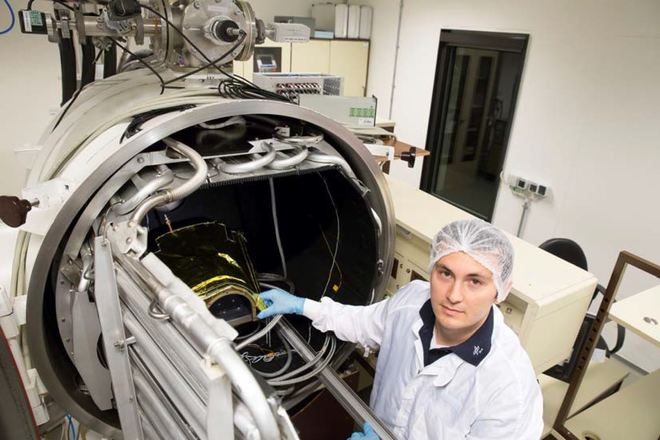

The main purposes of the Sun Simulation Chamber is thermal cycling with/without artificial sun, thermal balancing with/without artificial sun and venting intended for small range applications.
Temperature control: electrical, thermostat and LN2
Technical details of sun simulator:
• Heat: 0.5 - 1.4kW/m²
• Illuminated diameter: ca. 100mm
• Spectrum: 0.2 - 2.5µm
Type:
Service
Features thermal:
Vacuum
Solar simulator
Thermal plate
Temperature controlled shroud
Specimen length [mm]:
800.0
Specimen width/dia [mm]:
450.0
Higher temperature [K]:
393.15
Lower temperature [K]:
93.15
Solar simulator intensity max. [W/m²]:
1400
Data acquisition:
Temperatur measurement channels: 80, thermocouples: PT100
Vacuum limit [hPa] [mbar]:
<5·10^-6
Cleanroom classes (ISO 14644-1):
ISO Class ≤5
ISO Class 6
ISO Class 7
ISO Class 8
ISO Class 9
Certification:
ISO/IEC 17025
ISO 9001
AS/EN/JISQ 9100
Keywords:
TVAC, thermal vacuum cycling, thermal cycling, thermal balance, sun simulation, DLR
