Uniaxial mechanical testing PREMIUM

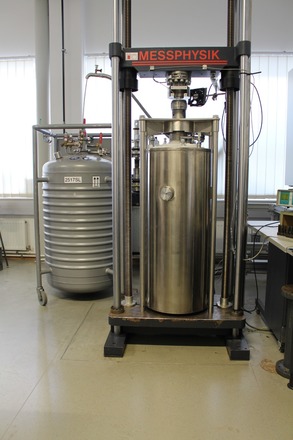

AAC’s mechanical testing facilities, such as static tensile, compression, flexural and shear testing, complemented with dynamic testing methods (e.g. impact, fatigue, fracture toughness and fatigue crack growth) deliver important material properties. We are offering not only standardized mechanical testing but tailored testing solutions at extreme conditions, such as cryogenic testing at 4.2K, 77K between -150°C and 600°C and high temperature testing up to 1300°C.
Mechanical Tests on
• Metals
• Plastics
• Composites
• Adhesives
• Honeycombs
• Ceramics
Test results
• Tensile
• Compression
• Bending
• Bearing
• K1C
• Fatigfue crack growths
• SCC
• In-plane shear
• ILSS
• GIC, GIIC
• CAI
• Lap shear
• Flatwise tensile
• Flatwise compression
• Edgewise compression
• Honeycomb shear
Force from 10 N up to 200 kN
Temperature: 4.2K, 77K, -150°C – 600°C, up to 1300°C

Aerospace & Advanced Composites GmbH - your highly experienced partner in material testing and development for space, aerospace and terrestrial applications.

Type: Service
Available standards (e.g. ASTM, MIL): ASTM, DIN-ISO, SACMA
Features material:
Outgassing
Tensile
Specimen length [mm]: 1000.0
Specimen width/dia [mm]: 100.0
Specimen height/thk [mm]: 100.0
Mass max. [kg]: 20.0
Data acquisition: force, stroke, strain
Certification:
ISO/IEC 17025
ISO 9001
AS/EN/JISQ 9100
Keywords: AAC, cryogenic to high temperature mechanical testing, metals, composites, plastics, honeycombs
