Complex Irradiation Testing

Complex Irradiation Facility (CIF / VUV)

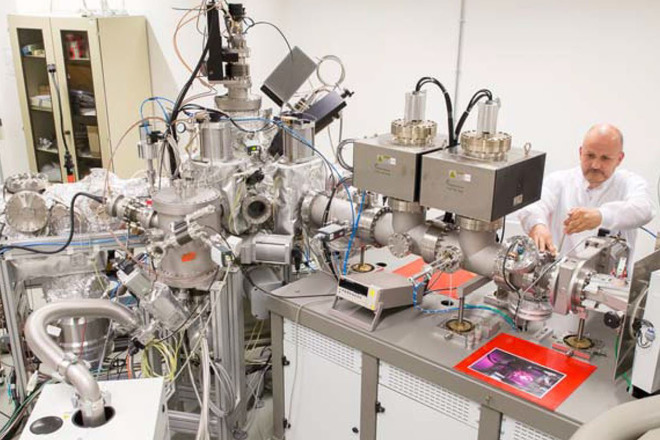

The Complex Irradiation Facility is capable to simulate different UV sources, as well as proton and electron radiation under vacuum.

Recipient:

• Volume: 0.035 m³ (400 mm diameter)

• Pressure: <10^-8 mbar without VUV-simulator and <10^-6 mbar with VUV-simulator

• Irradiated diameter: 80 mm

Light sources:

• Sun simulator: 200 – 2150 nm (4.5kW/m²)

• Deuterium VUV source 112 – 400 nm (1.65 W/m²)

• Argon VUV source 40 – 410 nm (58 mW/m²)

Proton, electron source:

• Current at lower Energy Range (1 –10 keV): 1 – 100 nA

• Current at higher Energy Range (10 –100 keV): 0.1 – 100 μA

Specimen temperature control:

• Heating: Halogen emitter (600 W, 600 K)

• Cooling: Liquid Nitrogen (LN2, 80 K)

Features radiation:
Electron
Proton
Gamma
UV
Neutron
Heavy ion
Laser
Specimen width/dia [mm]: 80.0
Data acquisition: In situ measurement: reflectivity and absorptivity (planned); quadrupole mass spectrometer, radiation, temperature, pressure
Vacuum limit [hPa] [mbar]: <10^-8
Energy [MeV]: 0.1
Keywords: High intensity UV under vacuum, sun simulator, deuterium and argon source, proton electron, DLR, CIF, VUV
