Radiatedemmisions-RE
Conductedemmisions–AN
Radiatedimmunity–ALSE
Conductedimmunity–BCI
Electrostatic discharge-ESD
EQUIPMENT:

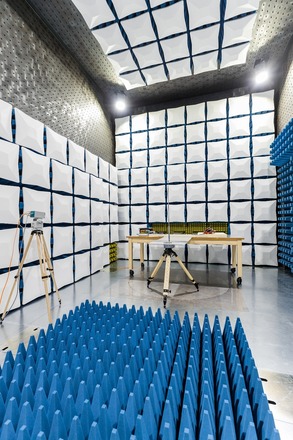

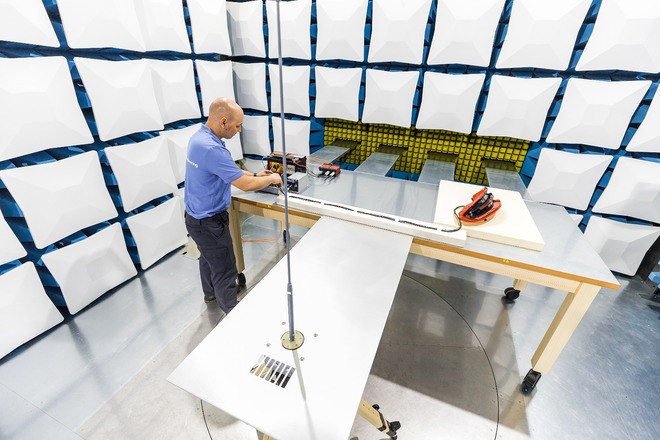

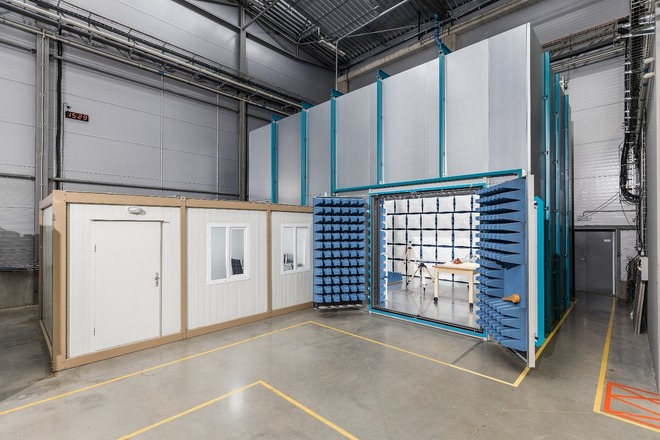

Semianechoicchamber:
• Internalusabledimensions:7.8x5.3 x4.8 m
• MaximalDUTdimensions:Ø1,5mand1,5m
• Floorload: 500kg/m2
Measuringreceiver:
• Rohde& Schwarz
• Frequencyrange: 1Hz –26 GHz
• Type ofmeasurement: FFT
Antenas:
• Rohde& Schwarz Schwarzbeck
STANDARDS:
Automotive:
• EMI CISPR25 (150 kHz - 6 GHz)ready up to 26 GHz
• EMS ISO11452-2 (80 MHz - 18 GHz)(April2025)
• ESD ISO 10605
Industry and commercial:
• EMI CISPR 16 (9 kHz - 6 GHz)readyup to 26 GHz
• EMS IEC/EN 61000 (26 MHz - 18 GHz)
Type:
Service
Available standards (e.g. ASTM, MIL):
EMI CISPR23, EMS ISO11452-2, ESD ISO 10605; EMI CISPR 16, EMS IEC/EN 61000
Specimen length [mm]:
7800.0
Specimen width/dia [mm]:
5300.0
Specimen height/thk [mm]:
4800.0
Data acquisition:
DAQ system up to 48channels; sampling rate up to 1 MS/s
Certification:
ISO/IEC 17025
ISO 9001
AS/EN/JISQ 9100
Keywords:
EMC ESD Radiated emmisions Conducted immunity
