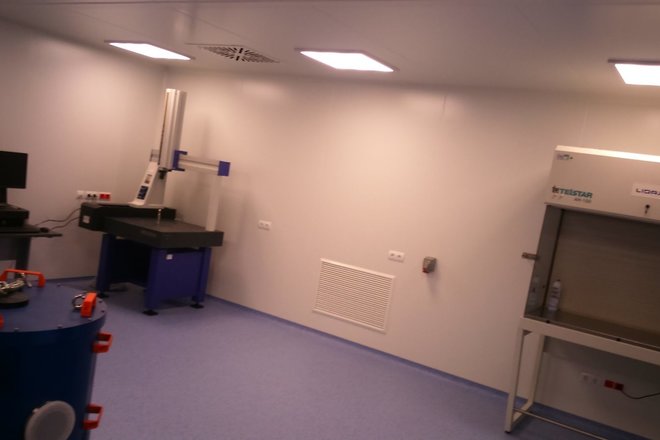

Cleam Rooms (ISO 7 & ISO 5) environmentally controlled for AIT activities of space flight hardware, compatible for optomechanical and any sensible equipment.
LIDAX offers to our Customers, our technical staff to carry out assemblies, integrations and tests activities or on the other hand it is possible under request to rent this facility to other external companies.
Temperature: 22ºC +- 3ºC
Network (GB / Ethernet)
Gas Spply: A Nitrogen gas supply outlets
Electrical Conductive Floor and Electrostatic Protection
Additional horizontal laminar flow bench: Telstar AH-100
ISO 5 area is 6 M^2
ISO 7 area is 49 M^2
Specimen length [mm]:
6000.0
Specimen width/dia [mm]:
10000.0
Project heritage:
FCI&IRS Telescope Optics for MTG Satellite Series: Optical Mounts and Environmental Test Campaign
Cleanroom classes (ISO 14644-1):
ISO Class ≤5
ISO Class 6
ISO Class 7
ISO Class 8
ISO Class 9
Certification:
ISO/IEC 17025
ISO 9001
AS/EN/JISQ 9100
Keywords:
Cleanroom, Clean Room, ISO 5, ISO 7, Cleanliness, AIT
