Metrology and 3D Scanning (CMM)

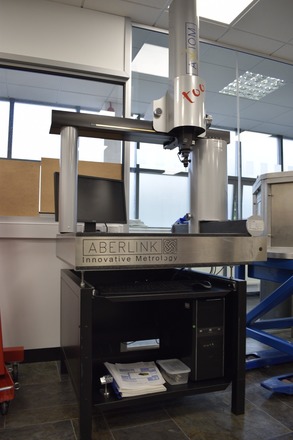

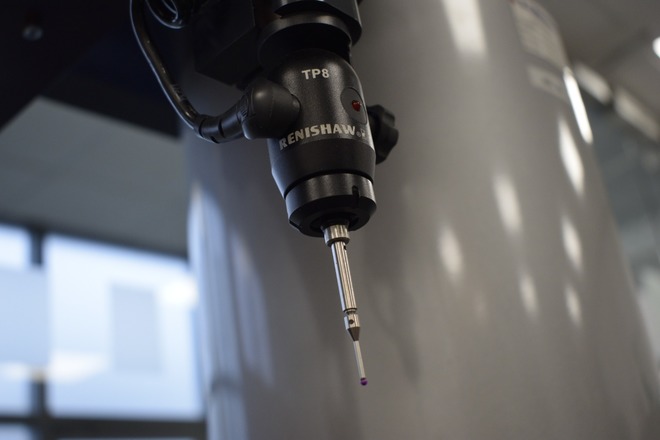

Aberlink Axiom Too CMM with selection of probes (sub-micron accuracy).
3D Scanning of medium-large structures (sub-milimeter accuracy)
Reverse engineering and measurement service
Full integration with CAD systems for generation of technical drawings

Axis Travel:
X 640mm
Y 600mm
Z 500mm

Volumetric Accuracy: TP20 (2.4+0.4L/100) um
Scale Resolution: 0.5um

The CMM is part of AEON's growing CERES facility (Centre for Engineering and REsearch). Please get in touch should you have a project that our experienced engineers can assist with.

Type: Service
Mass max. [kg]: 300.0
Cleanroom classes (ISO 14644-1):
ISO Class ≤5
ISO Class 6
ISO Class 7
ISO Class 8
ISO Class 9
