Vibration Testing 89kN

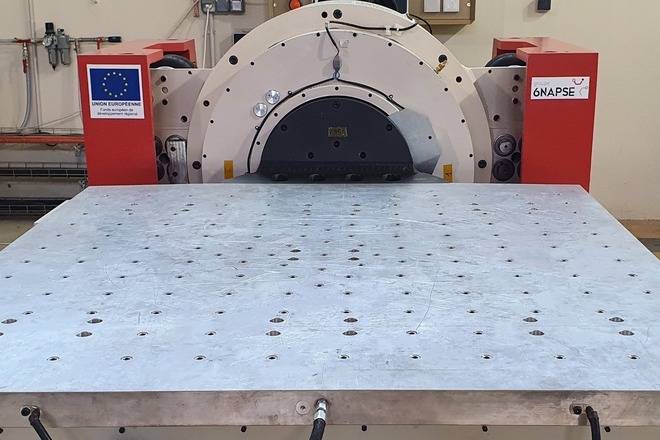

The Shaker LDS V964 is a water-cooled electrodynamic shaker for shock and high-performance vibration testing of large devices. It can deliver sine and random forces up to 89 kN. Our shaker is situated in a clean environment, allowing for testing of sensitive samples under a controlled level of contamination.
The shaker is located in an ISO 8 cleanroom.

Available standards (e.g. ASTM, MIL): EN 60068-2-6, EN 60068-2-27, EN 60068-2-64, ISO 16750-3, ISO 19453-3, EN 61373, MIL-STD-202 Meth. 201, 204,214, MIL-STD-810 Meth. 514, DO-160 Section 8 and more.
Features mechanical:
Static load
Micro vibration
Specimen length [mm]: 1500.0
Specimen width/dia [mm]: 1500.0
Mass max. [kg]: 900.0
Frequency min. [Hz]: 5.0
Frequency max. [Hz]: 2500
Acceleration sine max. [g]: 100.0
Acceleration random max. [g rms]: 70.0
Acceleration shock [g]: 210
Data acquisition: Tests performed on LMS TestLab, and sensors connected to LMS SCADAS
Force sine max. [kN]: 89.0
Force random max. [kN rms]: 89.0
Displacement max. [peak to peak mm]: 38.0
Cleanroom classes (ISO 14644-1):
ISO Class ≤5
ISO Class 6
ISO Class 7
ISO Class 8
ISO Class 9
ISO/IEC 17025
ISO 9001
Keywords: Mechanical test, shaker, sine test, shock, random, aerospace, automotive, Groupe 6napse, environmental test, Vernon, France
