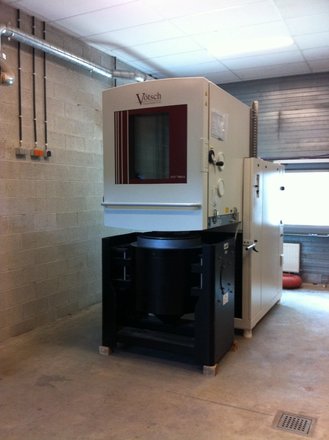

The combined thermal and vibration testing facility is able to reproduce up to 26KN to simulate thermal and mechanical loads simultaneously.
Features mechanical:
Sine
Random
Shock
Static load
Micro vibration
Acoustic
Specimen length [mm]:
400.0
Specimen width/dia [mm]:
400.0
Specimen height/thk [mm]:
400.0
Mass max. [kg]:
200.0
Frequency min. [Hz]:
5.0
Frequency max. [Hz]:
3000
Acceleration sine max. [g]:
40.0
Acceleration random max. [g rms]:
30.0
Data acquisition:
Up to 40 channels
Force sine max. [kN]:
26.0
Force random max. [kN rms]:
26.0
Displacement max. [peak to peak mm]:
25.4
Certification:
ISO/IEC 17025
ISO 9001
AS/EN/JISQ 9100
Keywords:
V2i
