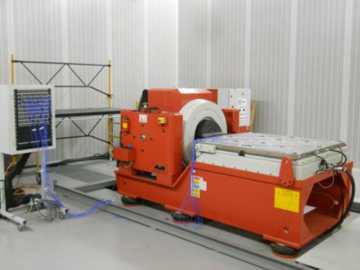

105kN Vibration Test System

105kN Vibration Test System
5Hz to 2.7kHz frequency range
1.2x1.2m vibration plate

Optionally coupled with 8 cubic meter Environmental Chamber
-45ºC to 155ºC Temperature
10% to 98% Humidity

1,000 channel data acquisition system
896 strain gauge conditioning

Features mechanical:
Sine
Random
Shock
Static load
Micro vibration
Acoustic
Specimen length [mm]: 1200.0
Specimen width/dia [mm]: 1200.0
Frequency min. [Hz]: 5.0
Frequency max. [Hz]: 2700
Data acquisition: 1,000 channels
Force sine max. [kN]: 105.0
Certification:
ISO/IEC 17025
ISO 9001
AS/EN/JISQ 9100
Keywords: vibration shock thermal strain structural custom test
